Mini Classic Drain/Pipe Inspection Camera with 20m/66ft ~ 40m/130ft cable

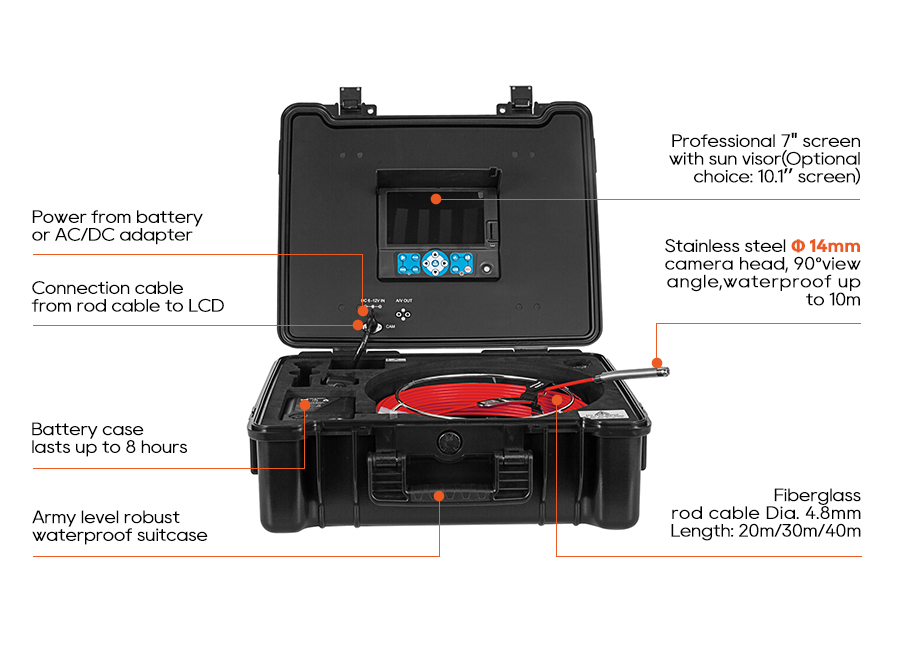

This is a Classic Drain/Pipe Inspection Camera that comes with a mini 14mm camera head, a 7inch LCD monitor with DVR, a 20m-40m cable reel that is rotatable itself in the case, a heavy duty case that all parts included, etc. It can be easily pushed into a 40mm pipe and pass through 90 degree bends in a pipe.

It’s widely used in Pipeline, Drain, Sewer, Duct, Chimney, Machinery and Building Inspection;
Key Features:

  • 1/4" CMOS camera, 82° vision angle, 648H x 488V pixels
  • Camera Size Φ14mm×125mm( Main body 14*20.5mm)
  • Sapphire glass lens cover, 4 white LEDs
  • Focus Distance 10cm (approx)
  • Water proof level, 10m underwater (camera fix on cable)
  • Push cable dia. 4.8mm
  • 7” LCD color monitor
  • SD Card slot to store still pictures or videos
  • One push record button
  • LED brightness control buttons
  • Video image rotate button
  • With microphone for audio recording
  • Rechargeable battery lasts up to 8 hours
  • On-Screen date and time
  • On-screen distance counter, Meter/feet
  • 20m-40m fiberglass push rod
  • Rotatable cable reel mounted in case for convenient operation
  • Waterproof ABS suitcase with all parts included

Optional Features:
  • 10.1” LCD screen
  • Built-in 512hz sonde

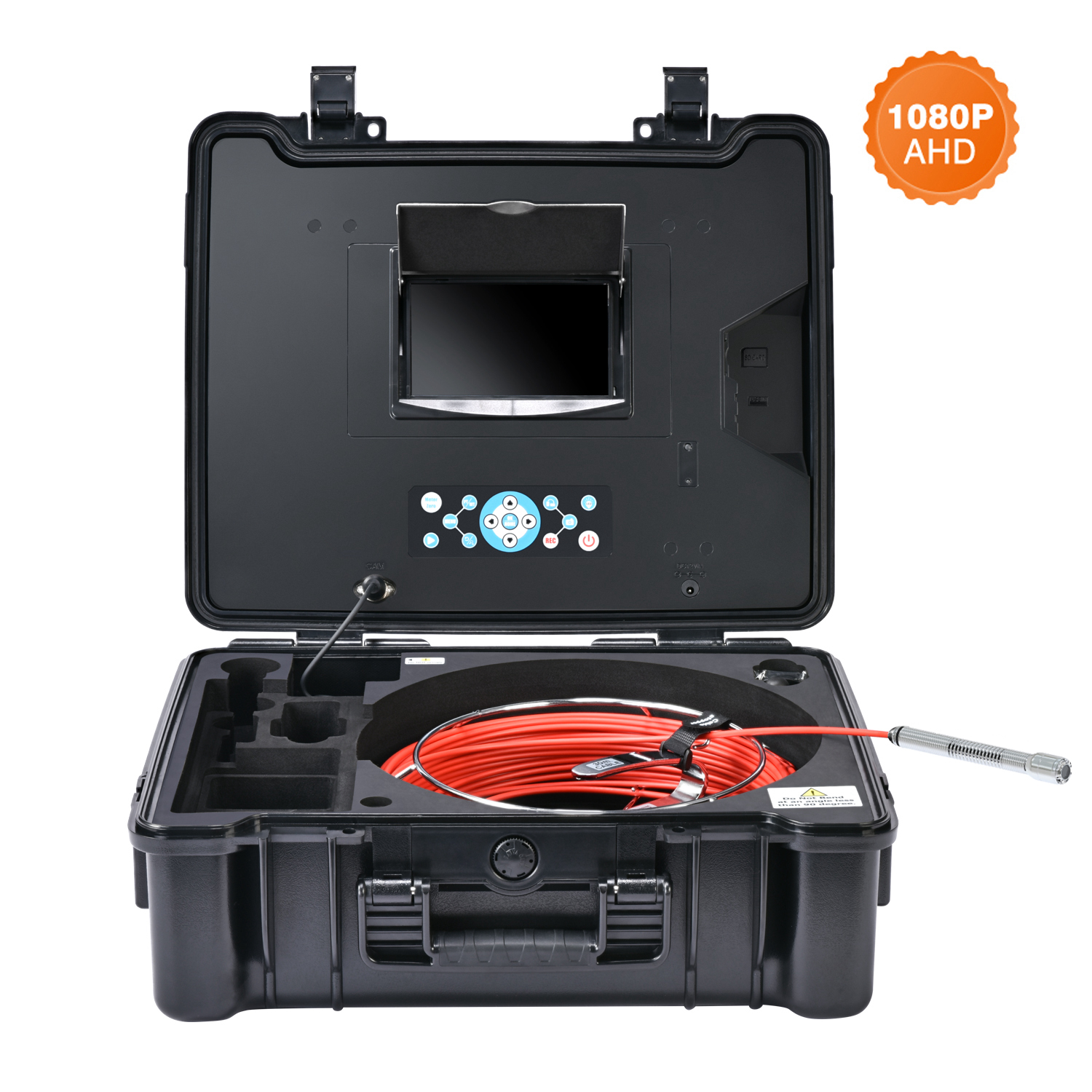

  • 1080P AHD 18mm camera head

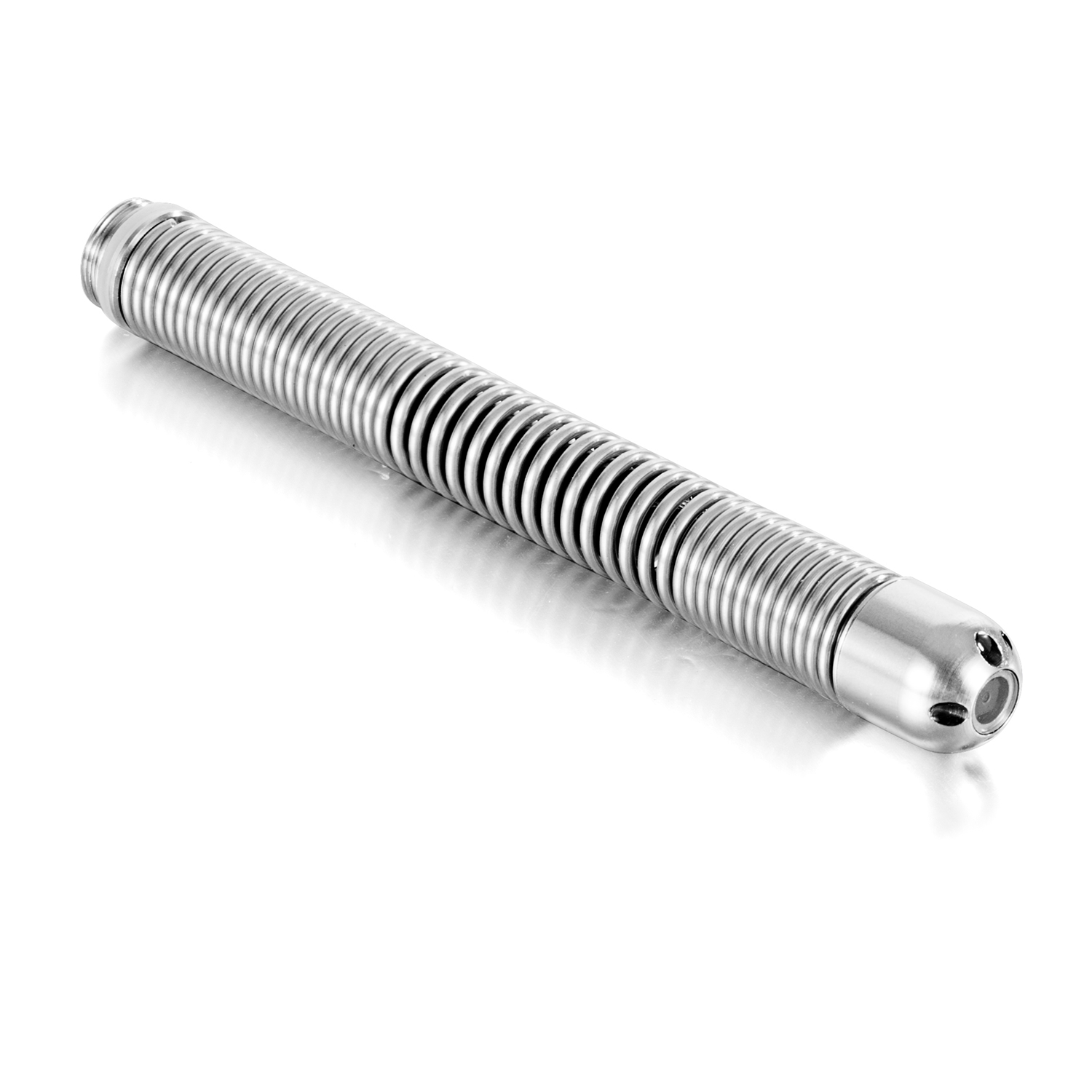

14mm Camera Head
  • Camera Size: Φ14mm×21mm
  • Camera Total Length: 125mm
  • Sensor: 1/4" CMOS
  • Resolution: 648x488 Pixels
  • View Angle: 90°
  • Focus Distance: 6~8cm (approx)
  • Depth-of-Field: 20cm(approx)
  • Front Lens: Sapphire glass
  • Water-Proof: 10m Under Water(Camera fix on Cable)
  • Shell Material: #304 stainless steel
  • Lighting: Built-in 4×LED(White)

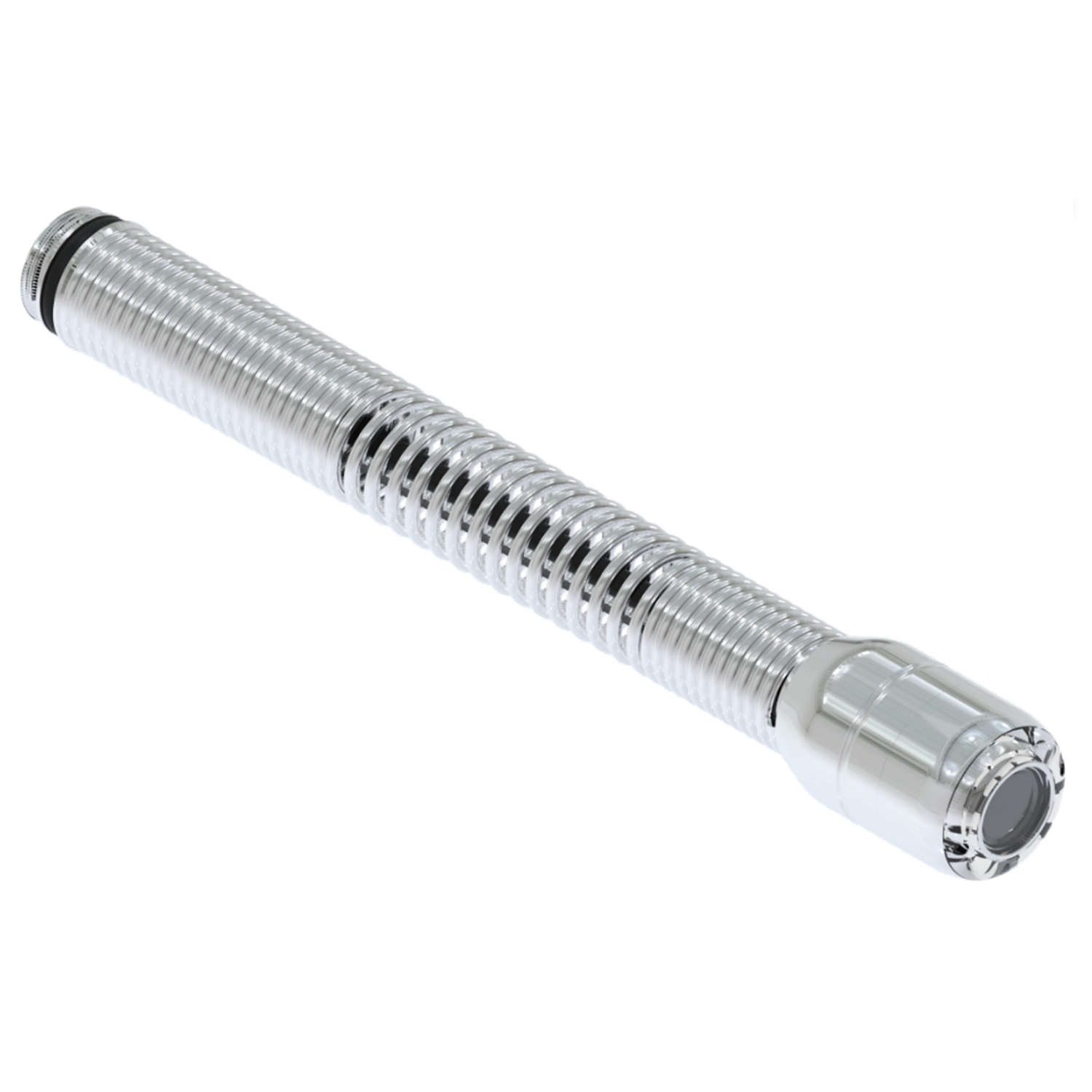

18mm Camera Head
  • Camera Size: Φ18mm×29mm
  • Camera Total Length: 135mm
  • Sensor: 1/3" CMOS
  • Resolution: AHD 1920*1080
  • View Angle: 130°
  • Focus Distance: 6cm (approx)
  • Depth-of-Field: 10cm(approx)
  • Front Lens: Sapphire glass
  • Water-Proof: 20m Under Water(Camera fix on Cable)
  • Shell Material: #304 stainless steel
  • Lighting: Built-in 9×LED(White)

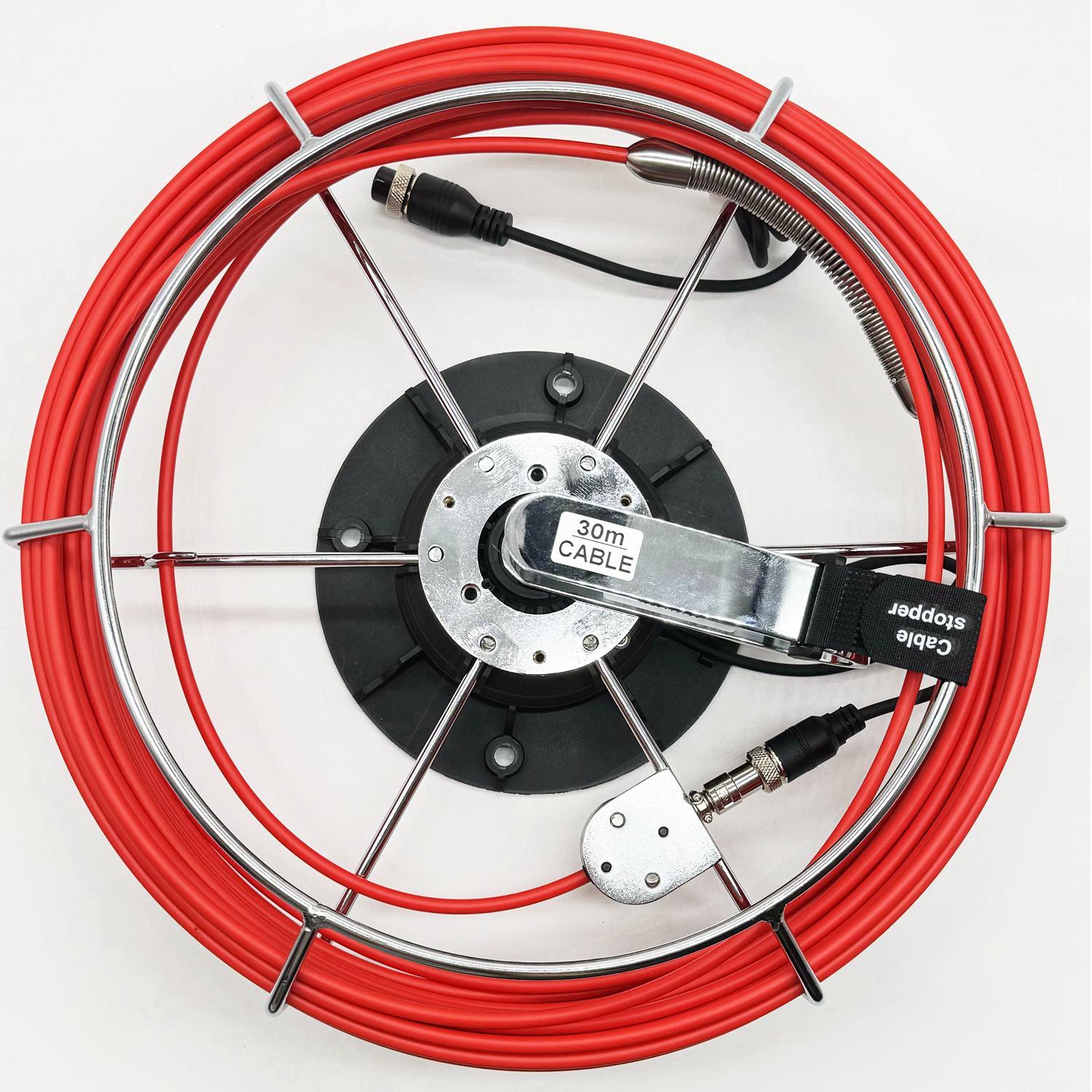

Cable Wheel
  • 20M-40M fiberglass rod cable
  • Dia. of push cable: 4.8mm
  • Material of cable: Fiberglass covered by PP
  • Operation: Mounted and rotatable in the case
LCD Monitor
  • Screen: 7-inch or 10-inch 16:9 Super bright HD color LCD screen
  • Resolution: 1024x600 pixels
  • Mirror and Flip: support image mirror, and flip
  • Video Resolution: AHD 1080P / CVBS D1
  • Video Encoding: H.264
  • Audio Recording: local sound record
  • Output: TV and Audio output
  • On-screen date and time
  • On-screen meter/ft. distance display(optional)
  • External memory: support SD memory card up to 64GB
  • Language: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish
Battery Supply
  • Power Supply: DC 12V input
  • Battery Capacity: 7.2V 6400mAh Li-on Battery
  • Power Output: 6-12V DC, USB 5V
  • Work/Charge time: 6/8 hours

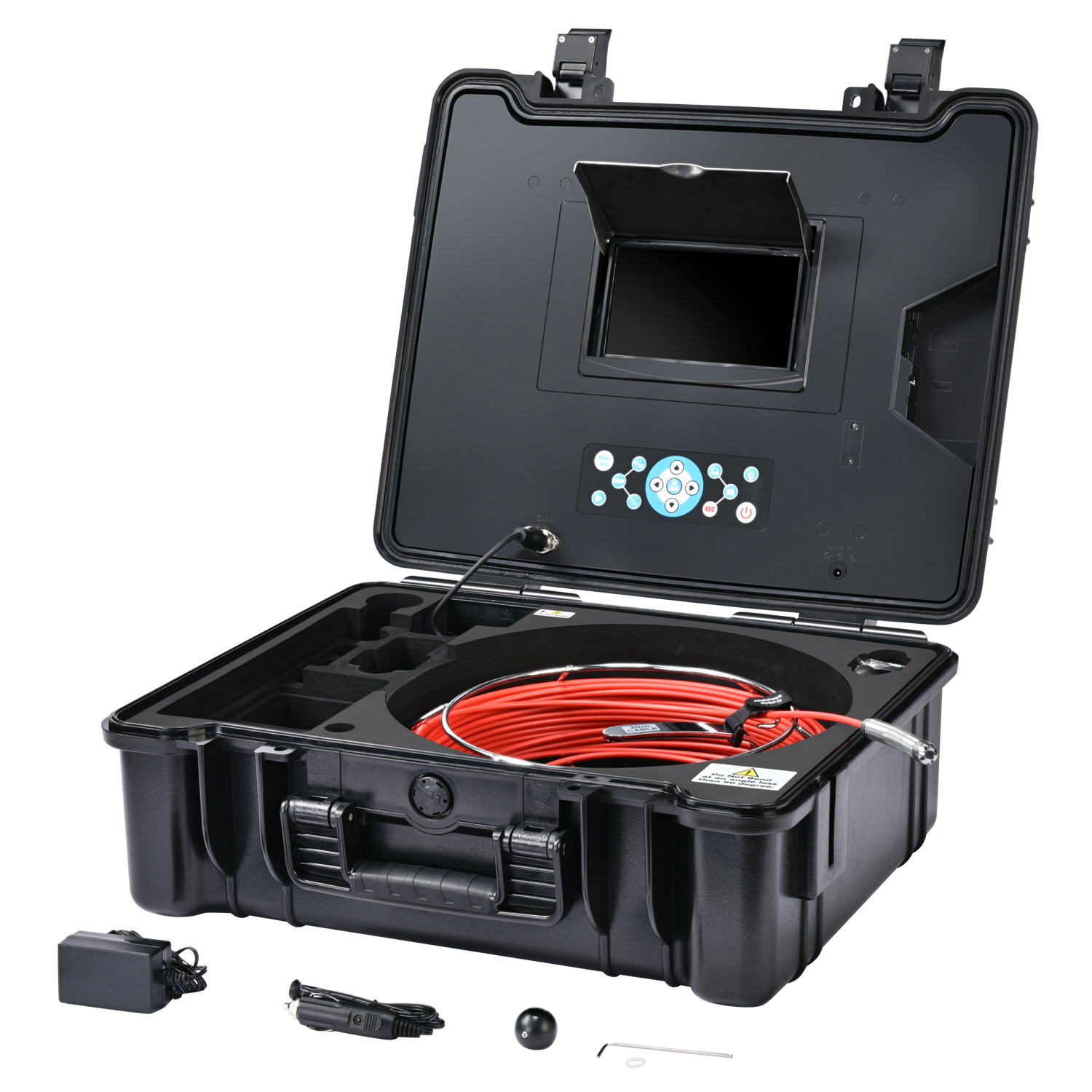

What’s included:
  • 1 x 14mm Camera head
  • 1 x 20m-40m cable wheel
  • 1 x ball guides(dia.28mm)
  • 1 x battery pack
  • 1 x remote control
  • 1 x screw driver
  • 1 x power adapter
  • 1 x car charger
  • 1 x Battery Cable
  • 1 x Screws and camera head waterproof seal
  • 1 x waterproof suitcase with monitor mounted
