3499F-Dual

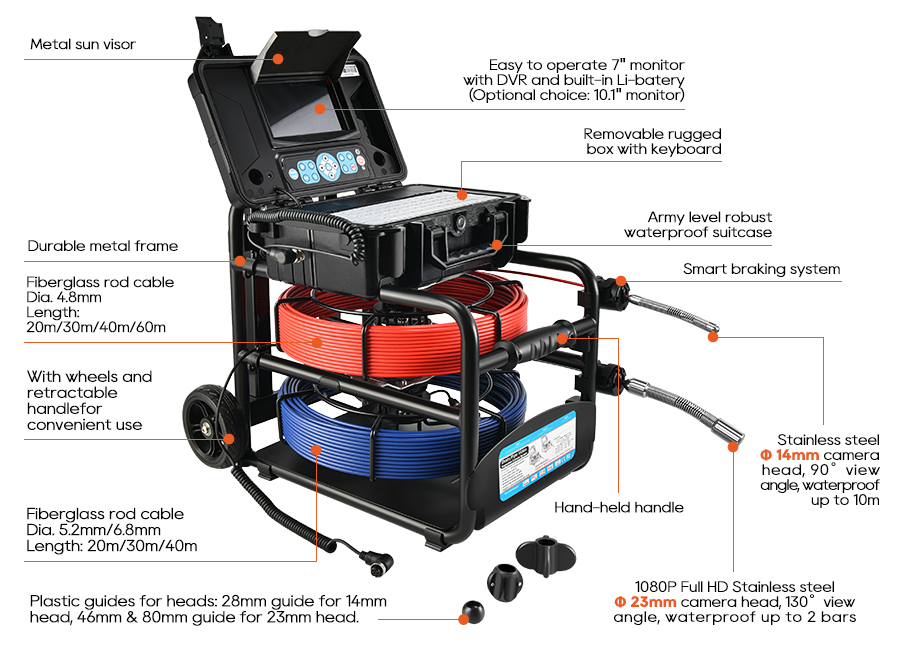

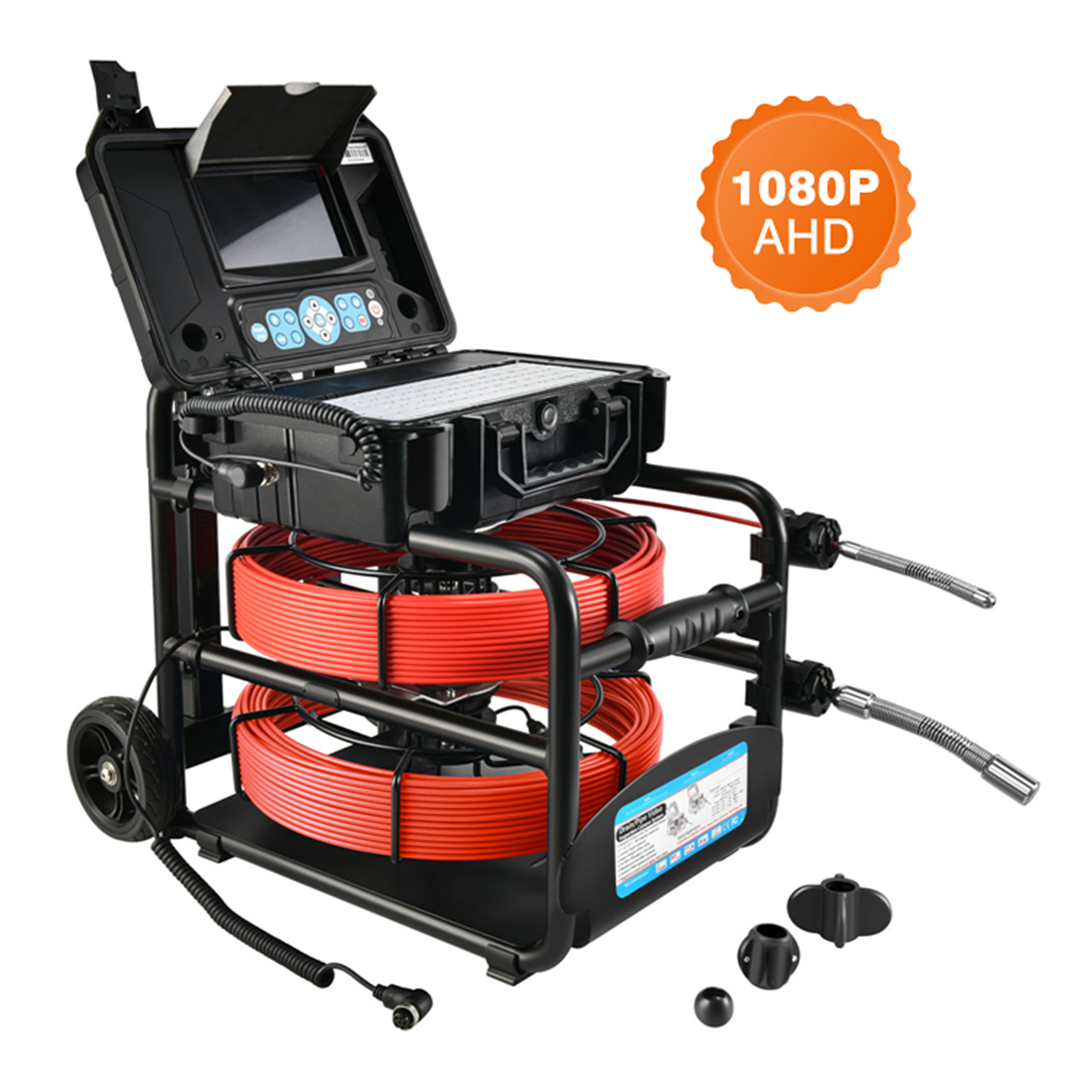

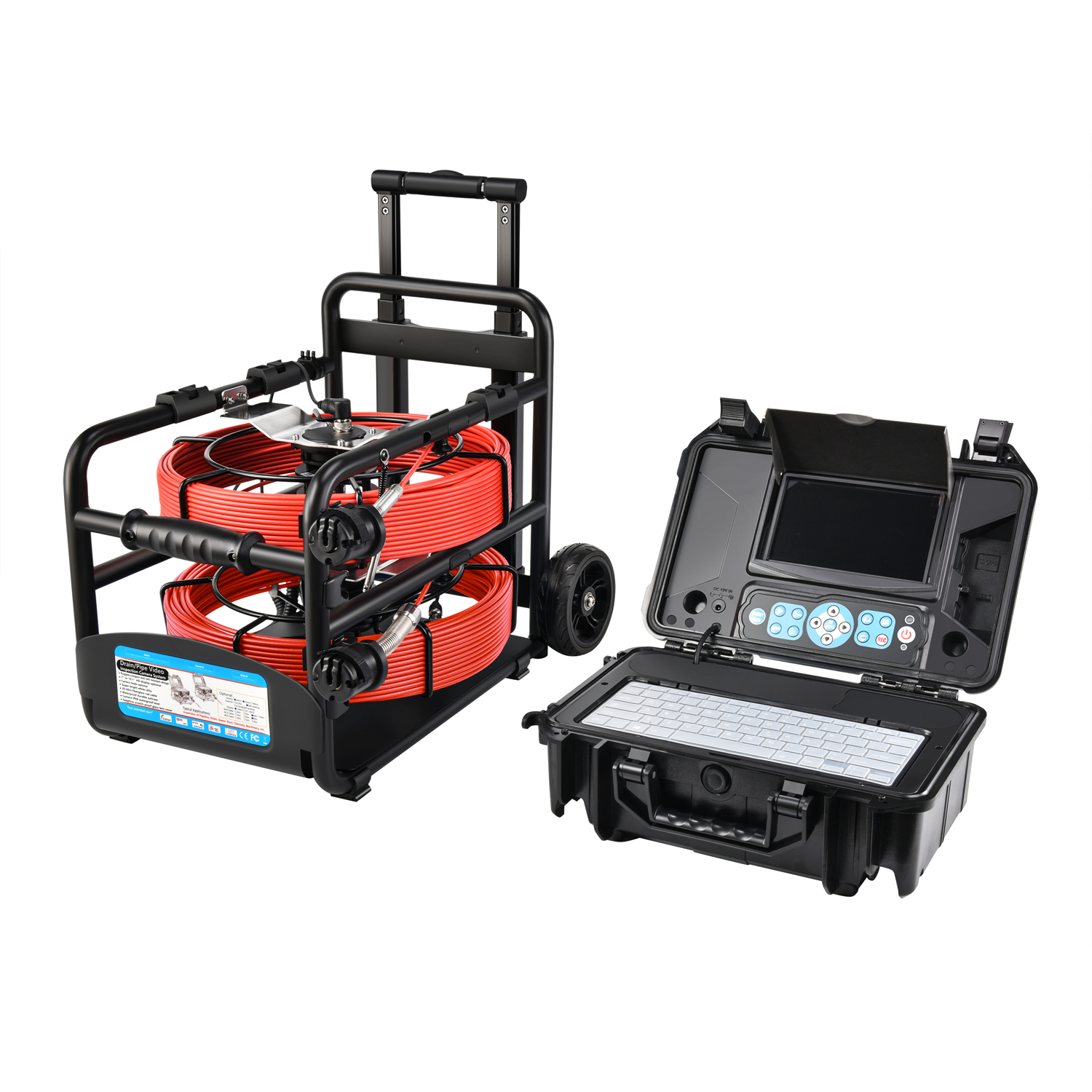

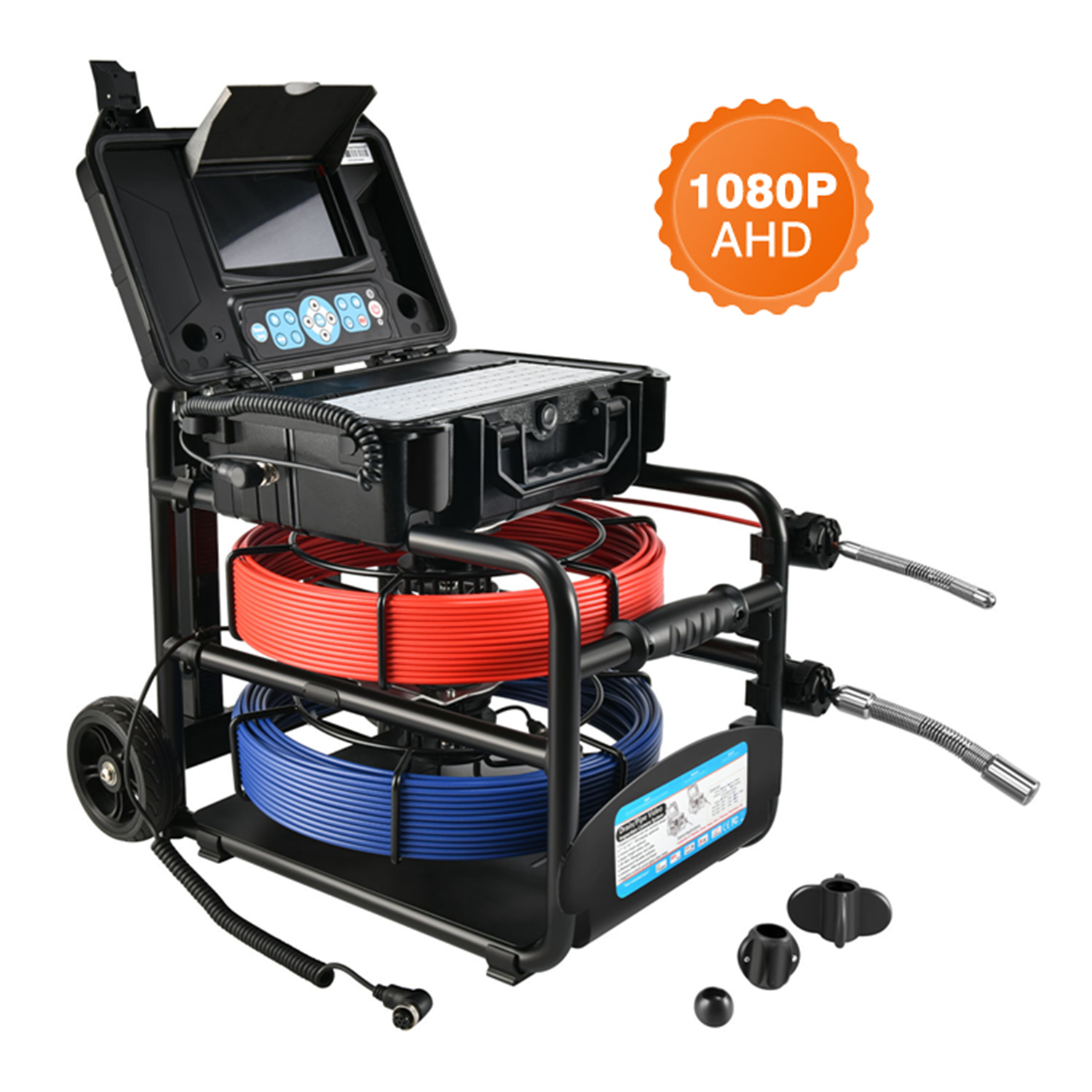

Compact Pipe Inspection Camera with Dual Cameras/Cables
One compact system with 2 cable wheels and 2 camera heads. Now it's possible to operate both 23mm and 14mm/18mm camera heads on a same system.

Typical Configurations:
1, 5.2mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
2, 6.8mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
Both 23mm head and 18mm head are 1080P AHD.
Online Inquiry Email Us
Key Features Specification What's Included
Key Features:


  • 23mm camera head with 20-40m cable, dia. 5.2mm or 6.8mm
  • 1080P Full HD Stainless steel camera head, IP68 waterproof level
  • With on-screen distance counter
  • Wireless keyboard for text input (English)
  • With two plastic guides 8-901 and 8-923
  • 14mm camera head with 20-40m red color rod cable, dia. 4.8mm
  • with ball guide 8-933
  • Suitable for pipe sizes: 20 to 150mm (0.8" to 4"）
  • 7" or 10.1" LCD monitor with recording feature; records to SD card
  • Ability to go through 90°bends in Φ32mm pipes
  • Rechargeable battery lasts up to 6 hours
  • Whole system waterproof (box closed)
  • Power adapter and car charger included
  • Compact, Rugged and easy to use design
  • With wheels and retractable handle for easy transpotation and operation

Optional Features:
  • Built-in 512hz sonde
  • Self-leveling function
  • 33khz transmitter
  • 10.1" LCD screen
  • 38mm camera head
  • 18mm camera head
Specification:
14mm Camera Head
  • Camera Size: Φ14mm×21mm
  • Camera Total Length: 125mm
  • Sensor: 1/4" CMOS
  • Resolution: 648x488 Pixels
  • View Angle: 90°
  • Focus Distance: 6~8cm (approx)
  • Depth-of-Field: 20cm(approx)
  • Front Lens: Sapphire glass
  • Water-Proof: 10m Under Water(Camera fix on Cable)
  • Shell Material: #304 stainless steel
  • Lighting: Built-in 4×LED(White)

18mm Camera Head
  • Camera Size: Φ18mm×29mm
  • Camera Total Length: 135mm
  • Sensor: 1/3" CMOS
  • Resolution: AHD 1920*1080
  • View Angle: 130°
  • Focus Distance: 6cm (approx)
  • Depth-of-Field: 10cm(approx)
  • Front Lens: Sapphire glass
  • Water-Proof: 20m Under Water(Camera fix on Cable)
  • Shell Material: #304 stainless steel
  • Lighting: Built-in 9×LED(White)

23mm Camera Head
  • Camera Size: Φ23mm×51mm
  • Camera Total Length: 155mm
  • Sensor: 1/3" CMOS
  • Resolution: AHD 1920*1080
  • View Angle: 130°
  • Focus Distance: 15cm (approx)
  • Depth-of-Field: 20cm(approx)
  • Front Lens: Sapphire glass
  • Water-Proof: 20m Under Water(Camera fix on Cable)
  • Shell Material: #304 stainless steel
  • Lighting: Built-in 15×LED(White)
  • Operating Temperature: -10~50℃/+14~+122℉
  • Storage Temperature: -20~60℃/+4~+140℉

Dual Cable Wheels
  • 20/30/40M fiberglass rod cable for 5.2/6.8mm cable + 20/30/40/60M fiberglass rod cable for 4.8mm cable
  • Dia. of push cable: 5.2mm/6.8mm + 4.8mm
  • Material of cable: Fiberglass covered by PP

LCD Monitor
  • Screen: 7-inch or 10-inch 16:9 Super bright HD color LCD screen
  • Resolution: 1024x600 pixels
  • Mirror and Flip: support image mirror, and flip
  • Video Resolution: AHD 1080P / CVBS D1
  • Video Encoding: H.264
  • Audio Recording: local sound record
  • Output: TV and Audio output
  • On-screen date and time
  • On-screen meter/ft. distance display(optional)
  • External memory: support SD memory card up to 64GB
  • Language: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish

Battery Supply
  • Power Supply: DC 12V input
  • Battery Capacity: 7.2V 6400mAh Li-on Battery
  • Power Output: 6-12V DC, USB 5V
  • Work/Charge time: 6/8 hours
What's Included:
  • 1 x 23mm Camera head + 1 x 14mm/18mm Camera head
  • 1 x 20/30/40m cable wheels + 20/30/40/60m cable wheels
  • 2 x Plastic guides(dia.80mm and dia.46mm) + 1 x ball guide(dia.28mm)
  • 1 x remote control
  • 1 x screw driver
  • 1 x power adapter
  • 1 x car charger
  • 2 x connection cables
  • 1 x Screws and camera head waterproof seal
  • 1 x waterproof control box with monitor mounted
